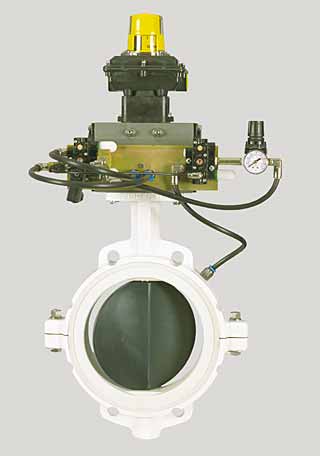

Purpose: Material Cut-Off Valve between a Filter Receiver and an Extruder Handling PVC Powder
Valve Size: 8"
Series Number: 486
Housing: Cast Iron, White Epoxy Coated
Disc: Black Nylon, Molded over a 316 Stainless Steel Shaft
Seat: White Buna-N
Limit Switch:Trak-Lok™ NEMA 4/12
Actuator:Tork-Mate™ 690 Series, Double Acting
Controls: Automated Seat Inflation for Vacuum Service, NEMA 4/12
Product Application 20043-2
