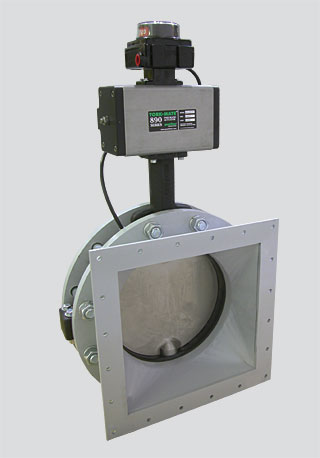

Purpose: Material Cut-Off Valve Handling Portland Cement Discharging from a Silo to a Load Out Spout
Valve Size: 14"
Series Number: 486
Housing: Cast Iron
Disc: 316 Satin Stainless Steel
Seat: Black EPDM
Limit Switch:Trak-Lok™ 649 Series, NEMA 4/12
Actuator:Tork-Mate™ 890 Series, Double Acting
Controls: Automated Seat Inflation, NEMA 4/12
Options: Complete assembly including square flange adapter
Product Application 20811-1
