Product Application

Purpose: High Pressure Inlet Valve for a Pneumatic Conveying System Handling Toner Powder

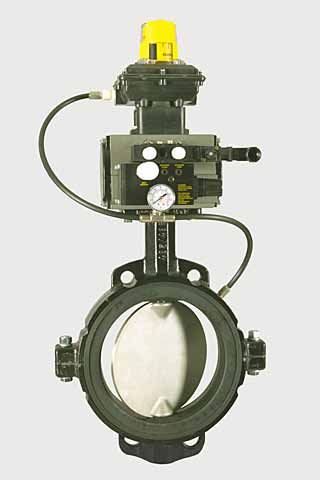

Series 486 - 8" Valve

Valve Size: 8”"

Series Number: 486

Housing:
Cast Iron

Disc:
316 Satin
Stainless Steel

Seat:
Black EPDM

Limit Switch:
Trak-Lok™ NEMA 4/12
with Pressure Switch

Actuator:
Tork-Mate™ 690 Series, Double Acting

Controls:
Automated Seat Inflation, NEMA 4/12


    Product Application 9724-3
