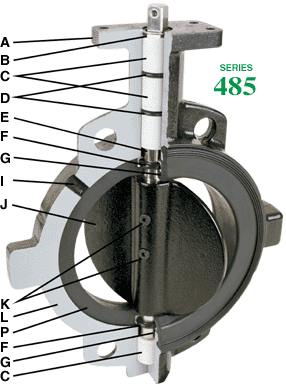

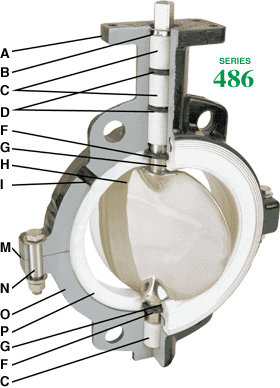

Design
features for reliable performance
A. ACTUATOR MOUNTING
FLANGE:
Flange is designed for direct actuator mounting.
B. RETAINING
RING: Retaining
ring simplifies bearing and seal removal and ensures positive
bearing retention.
C. BEARINGS: Multiple bearings substantially
reduce operating friction and torque requirements eliminating
any metal-to-metal contact, thus preventing shaft galling and
freezing.
D. SHAFT SEALS: O-ring shaft seals insure
positive sealing under the most adverse conditions.
E. SHAFT: Corrosion resistant, high
strength steel shaft is easily replaceable.
F. SEAT O-RING
SEAL: O-ring
provides long lasting positive seal of seat inflation pressure.
G. MATERIAL SEAL: Land seal prevents material
contamination of seat o-ring seal.
H. DISC/SHAFT: Integral disc and shaft
with smooth, contoured surface provides minimum resistance to
flow and reduces material buildup.
I. AIR INLET
PORT: Oversized
inlet port allows quick valve pressurization/
depressurization.
J. DISC: Smooth contoured surface
assures extended seat life and disc is easily replaceable.
K. DISC SCREWS: Self-locking screws of
high tensile steel provide strong link between disc and shaft,
yet allow easy disassembly.
|
